Entry # 8316: 1XNQ_j2_A-C569_A-C866

Primary Citation: (from PDB entry 1XNQ)

F.V.MURPHY V.RAMAKRISHNAN STRUCTURE OF A PURINE-PURINE WOBBLE BASE PAIR IN THE DECODING CENTER OF THE RIBOSOME. NAT.STRUCT.MOL.BIOL. V. 11 1251 2004

Experimental Method: X-RAY_DIFFRACTION

Structure Images

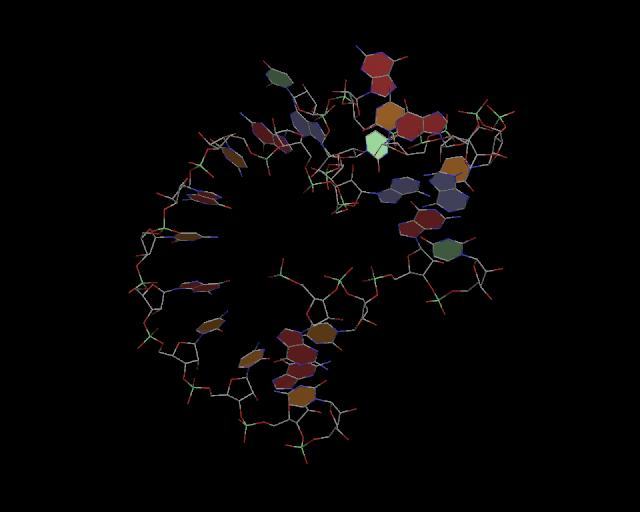

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:Bulge LoopCluster:1HNW j2 A-C569 A-C866
NC-IUBMB Classification:2HS14Cluster Page
Angles: 4°
Fit Criteria: C
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.71191Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain A: ACGCGUUAAGCGCGCCGC 18nt

Strand 2: Chain A: GCGU 4nt
